East Midlands Congenital Heart Centre

Products Used

• SAPA Dualframe Si Thermally Broken Windows.
• The Dualframe Si range uses advanced polyamide thermal break technology to provide thermal performance. The universal frames can be used with a huge number of opening options, making them suitable for a large-scale project such as this medical centre where a uniform aesthetic is desired but different uses required.
• Thermal Performance Dualframe 75mm Si windows meet and surpass the area weighted average U values stipulated in Part L of the Building Regulations.
• In terms of security this window is top-of-the-range, conforming to the requirements of BS7950:1997 - the BSI specification for enhanced security performance of windows.

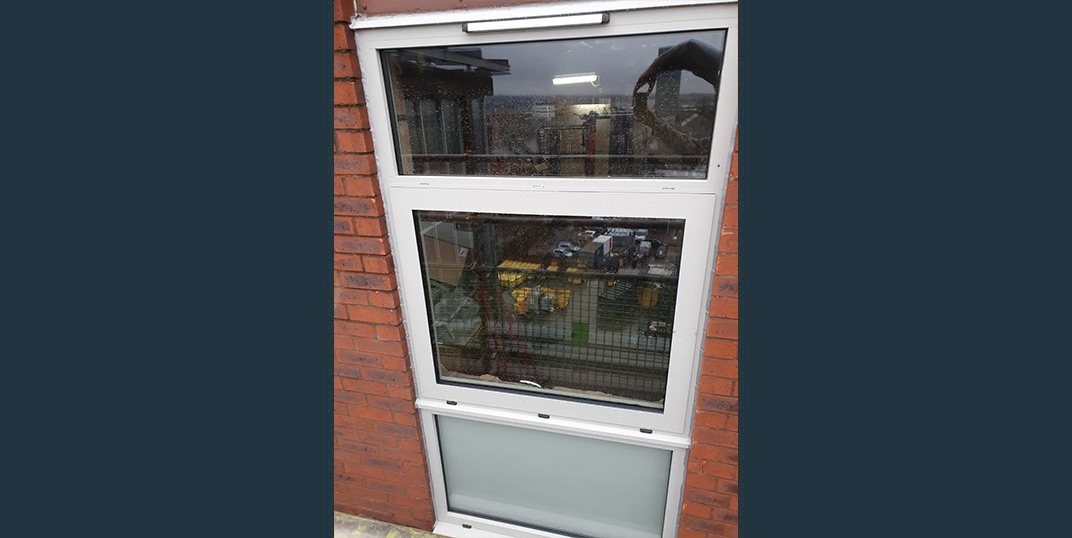

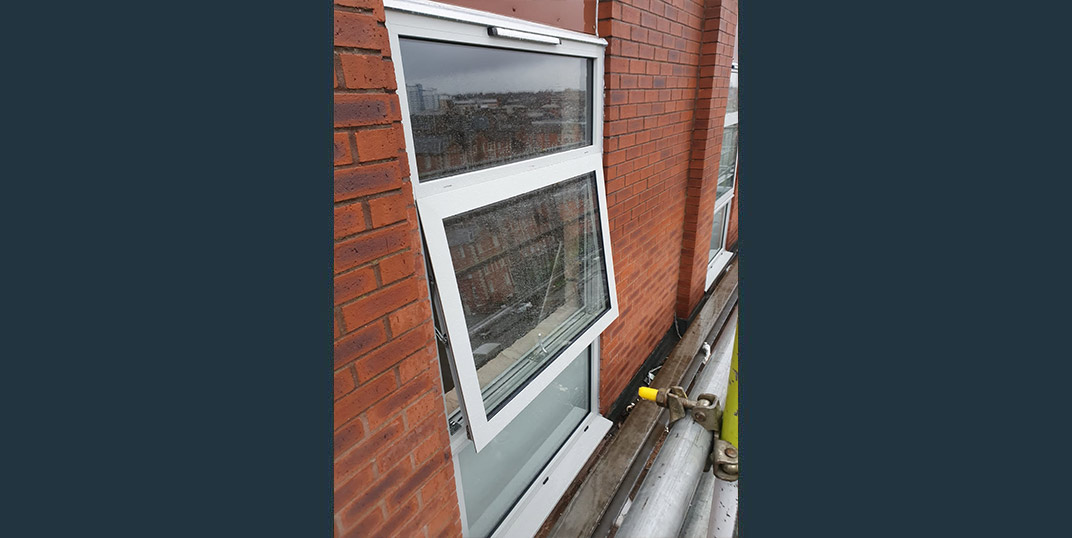

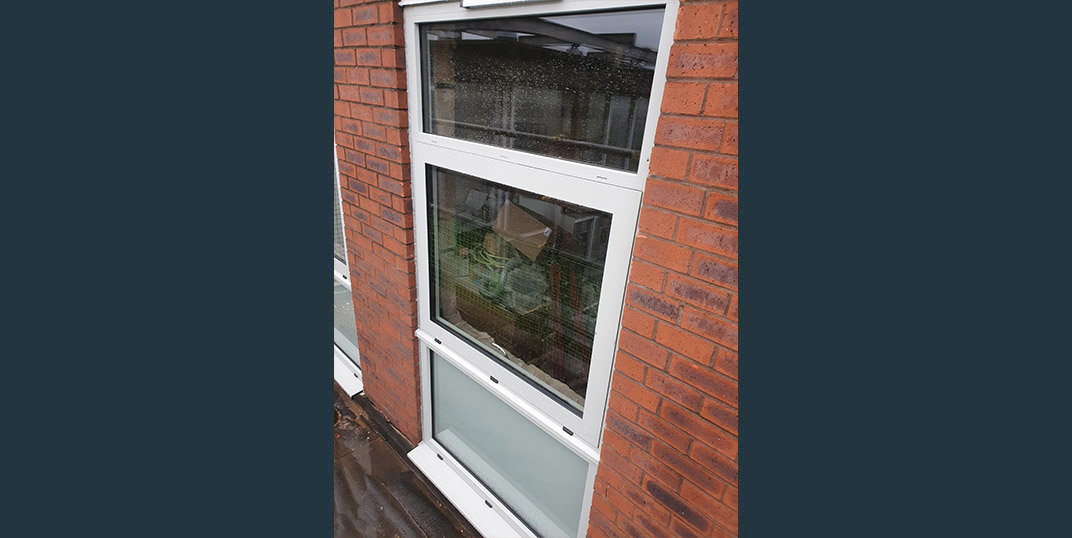

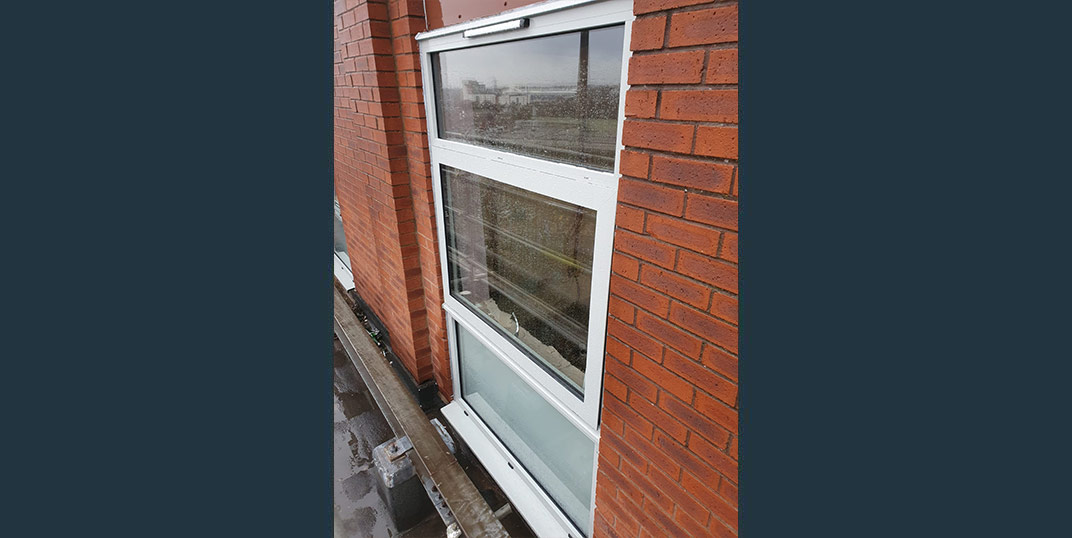

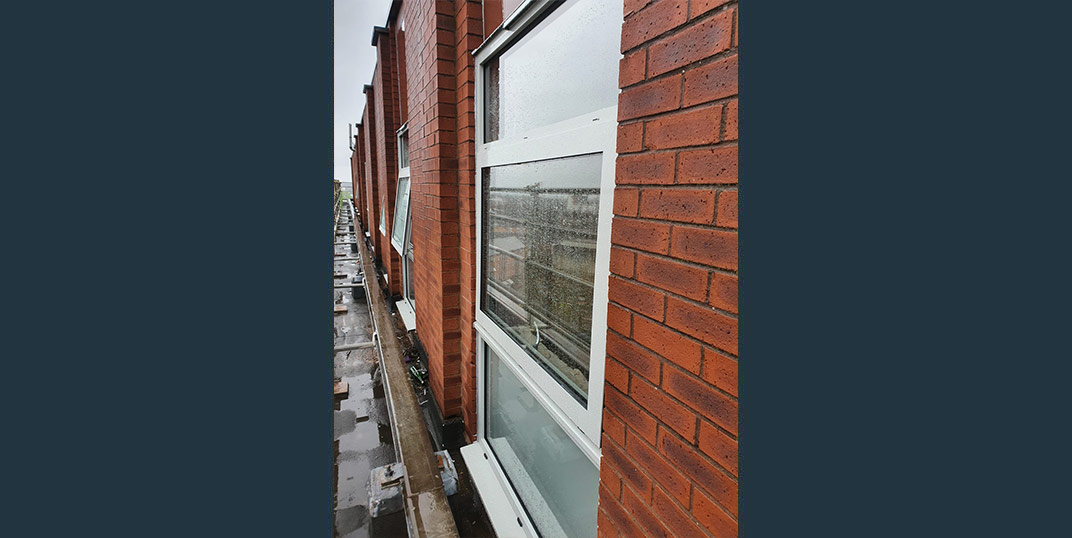

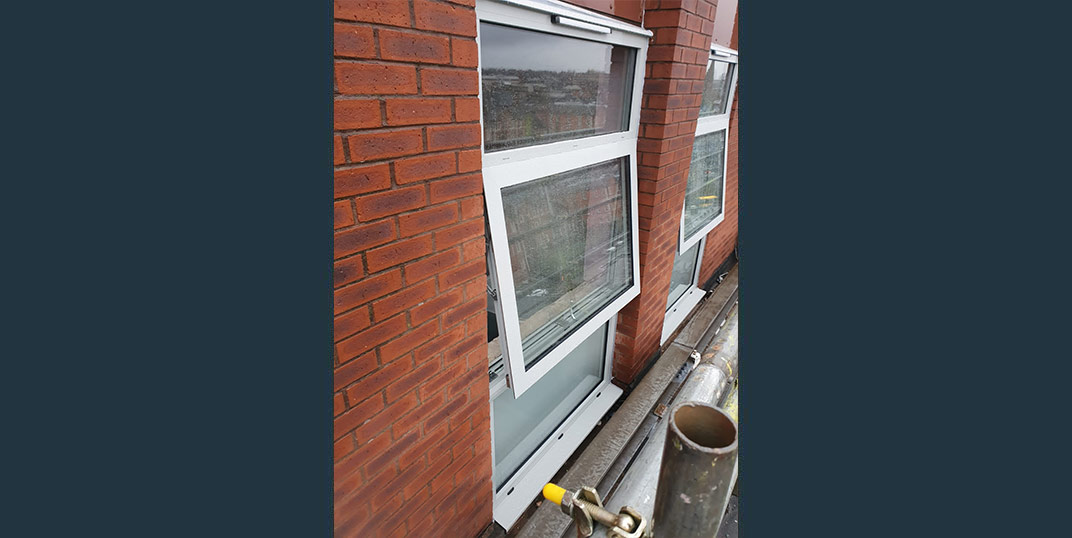

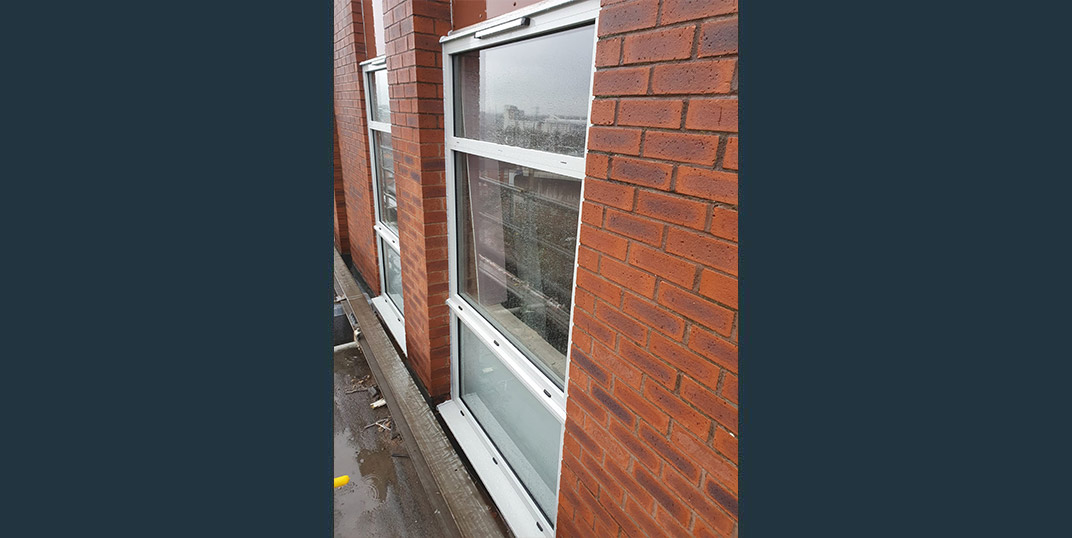

• We manufactured these in RAL7038 Agate Grey Satin Dualframe; as top hung with locking espagnolette handles and restrictors, 190mm cill and aluminium drip bar. Installed with 28mm clear glass units and RAL7038 Agate Grey glass ceramic panels plus EPDM (EPDM enhances the weathertightness, air barrier continuity, resistance to damage and durability) and Light Grey mastic to finish off.
