Architectural Aluminium Glazing Products
  • Cambridge Domestic Property
  • Cambridge Domestic Property
  • Cambridge Domestic Property
  • Cambridge Domestic Property

Project Details

  • Client: Residential
  • Main Contractor: Ali Systems
  • Photos: Ali Systems

Products Supplied

  • Senior Ali VU Thermally Broken Window
    • Silver straight locking handle

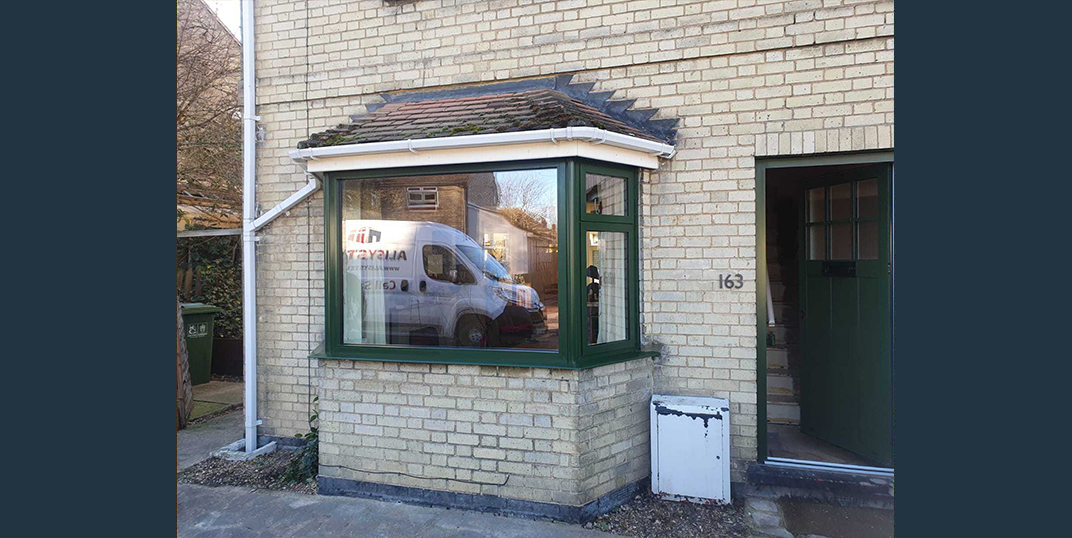

    • 190mm subcill - Bay Window
    • 150mm subcill - All other windows
    • Friction stay hinges (Egress hinges on Back Bed & Bed Front)
    • 8" keyed restrictor on Back Bathroom & Ground Floor windows
    • Adjustable bay poles on Bay Window
    • Cills horned
    • 25mm Box add-on at bottom of frame to clear window board excluding Bay Window Senior

    Ali VU is a super slimline aluminium window with a polyamide thermal break giving impressive thermal efficiency. Available with a host of design options, Ali VU’s strong super slim frame has a depth of just 38mm (fixed light) or 66mm with standard vent and is available in sizes up to a maximum of 1400mm x 1400mm, to give the widest views and maximise daylight in every room.

    Ali VU is ideal for both domestic and large scale residential projects and is perfectly complemented by our Ali FOLD door range. The stepped face option also means that Ali VU is perfect as a modern, energy efficient replacement for heritage style steel windows in both commercial and residential buildings.

  • SPW600 Thermally Broken Residential Door
    • Low rebated threshold
    • No external lever handle
    • Internal lever handle in black
    • Key/key euro cylinder in black with black escutcheon externally
    • Winkhaus AV3 slam lock with magnetic daylatch
    • Black butt hinges
    • Equally spaced mullion in lower section with panels
    • Plant on georgian bars in upper section colour matched to face planted on
    • Black cast iron letter plate with knocker attache
    • Internal of transom filled with hardwood to seal inside of profile for letterplate
    • 65mm white internal trims to top & sides

    SPW600e is a 75mm thermally broken polyamide aluminium door system, capable of being manufactured in single, double, inward or outward opening configurations and utilising low thresholds. It is available in single or dual colour.


    • Interior: RAL9910G Hipca White Gloss
    • Exterior: RAL6020 Chrome Green Matt


    • 28mm - 4mm Clear Toughened (Laurel Obscure on Back Bath & Satin Obscure on Door)
    • 20mm Black Warm Edge Spacer & Argon Gas
    • 4mm Clear Toughened Low E Panels
    • 28mm - Colour matched to frames
